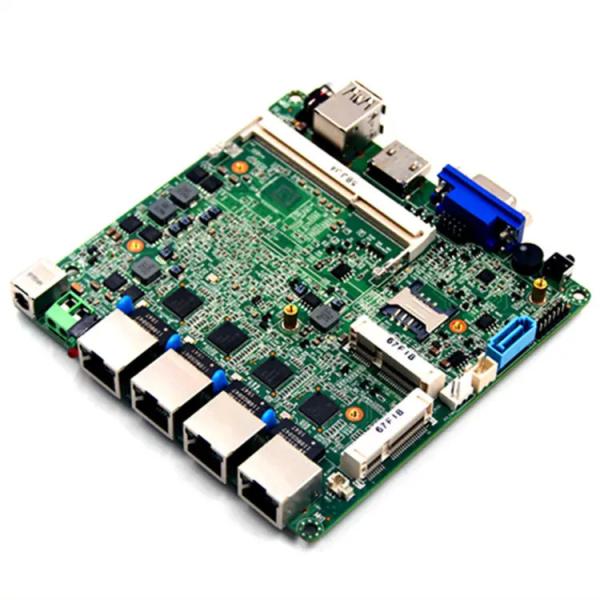

Newest J1900 / J1800 12*12cm Nano Computer Mainboard VGA HD-MI 4 Lan DDR3 Firewall Server Motherboard For Nano PC

Name: Newest J1900 J1800 1212cm Nano Computer Mainboard VGA HDMI 4 Lan DDR3 Firewall Server Motherboard For Nano PC
Brand: Original Factory
Price: 1 USD

Brand Name : Original Factory

Model Number : BT19NA4L-A01

Certification : Lead free / RoHS Compliant

Place of Origin : China

MOQ : 8

Payment Terms : T/T, L/C, Western Union

Supply Ability : 80000 Piece/Pieces per Month

Delivery Time : 3-7 work days

Packaging Details : bulk

Type : integrated circuit

Embedded Block RAM： : 28620 Kbit

RAM : 48-bit

Temperature : -55°C ~ 175°C (TJ)

Voltage - Supply : 2.375V ~ 3.465V

Products name : Integrated Circuit Chips

Contact Now

BT19NA4L-A01

Product Description

Processor	CPU	Support Baytrail-I/D/M serial Processor (J1900 J1800 E3845)
	CPU package	BGA
	Chipset	Support Baytrail-I/D/M serial Processor
	BIOS	EFI BIOS
Memory	Technology Architecture	Single channel DDR3L 1066/1333MHz
	capacity	Max support 8GB Ram
	socket	DDR3 SODIMM 204 Socket
Video	Graphics controller	Intel HD Graphics
Video	HDMI	HDMIsupport max resolution 1920x1080
I/O panel	Ports	1HDMI 1USB3.0 1USB2.0 6LAN 1* quick start button with indicator light 1* reset button 1DC 1 power indicator light 1* hard disk indicator
Internet	controller	6*Intel I211AT or Intel I210 Gigabit lan Port (optional
Internet	Cooler	Aluminum fanless heatsink
Input/output interface	USB	2USB2.0 1USB3.0 max supports+5V/1A
Input/output interface	Com	1*RJ45 Port RS-232 or RS485(optional)
Expansion Bus	Mini-PCle	1*Mini-PCIe socket ,support PCIE and USB signal equipment
Storage	SATA	1*standard SATAII Port, Maximum transfer rate 3Gb/s
	M-SATA	1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol, maximum transfer rate 3gb/s
	EMMC	Support 32/64/128G(optional)
Power	Power type	Single input DC power supply,DC12-19V,+/-5%
Working Environment	Operating temperature	-20℃ ~ +60℃
	storage temperature	-40℃ ~ +85℃
	Working humidity	0% ~ 90% relative humidity, no condensation
	Storage humidity	0% ~ 90% relative humidity, no condensation
System Support		Windows7 Windows8.1 Windows10 Linux If installing the system into EMMC, J1900 ,J1800 CPU only support Windows8.1 Windows10, E3845 CPU only support Windows8.1 Windows10 Linux
Size	size	120 x 120 mm
Size	weight	0.5KG
Certifications		CE,RoHS,FCC

XT interconnect technology for superior thermal performance
Enhanced avalanche capability
SMD package for direct integration to PCB
Sense pins for optimized switching performance

FAQ

Q1: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q2: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q3: How about your delivery time?
A:Generally, goods would be shipped in 1-7 work days after payment received, finally depends on order quantities.
Q4: What is your MOQ?
A:Minimum order quantity starts from ONE piece,it depends your specific order!
Q5: HOW can we get samples from you?
A:Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.
Q6:What is your products quality?Do you test all your goods before delivery?
A:Yes,We have 100% test before delivery,We can ensure the product quality of our company. All products have 30-90 days of quality assurance.

Any other more questions, please feel free to contact us. We are always at your service !

1.14V ~ 1.26V
